Western Snow Plow Parts Diagrams - HST: Hoses and Fittings

> Return to Western Plow Parts Diagrams

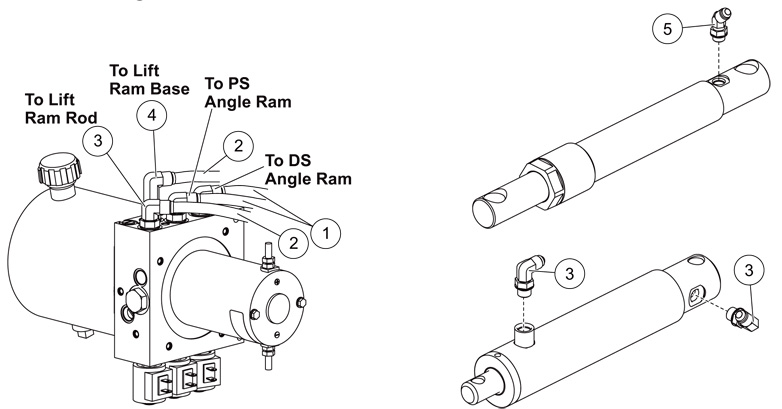

Chart Reference Number Part Description Part Number Order Part
(1) 1/4 x 32 Hose w/FJIC Ends (quantity: 2) 48519 CALL QTE
(2) 1/4 x 22 Hose w/FJIC Ends (quantity: 2) 56830 ORDER ONLINE
(3) Elbow 90° –6M O-Ring/MJIC (quantity: 5) 56615-1 CALL QTE
(4) Elbow, Long 90° –6M O-Ring/MJIC (quantity: 1) 64212-1 CALL QTE
(5) Elbow 45° –6M O-Ring/MJIC (quantity: 2) 26694 CALL QTE
(ns) Hose Wrap (quantity: 1) 56823 CALL QTE
ns = Not Shown.
F = Female.
M = Male or Metric.
