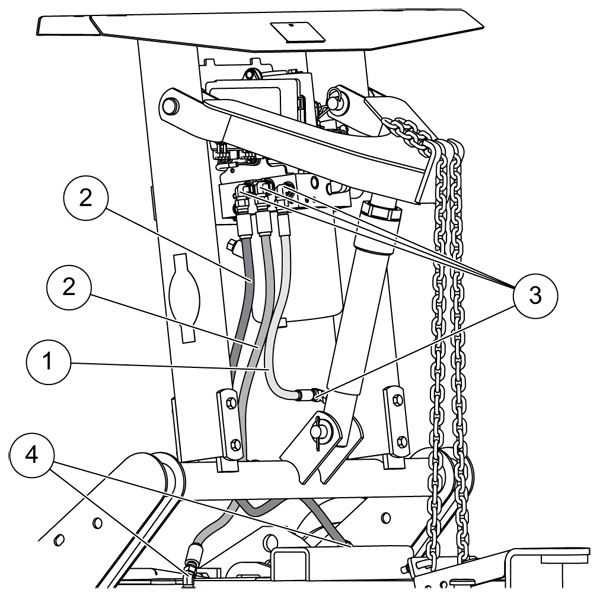

Western Snow Plow Parts Diagrams - Midweight / Pro Plow Series 2: Hoses and Fittings
> Return to Western Plow Parts Diagrams
| Chart Reference Number |
Part Description |
Part Number |
Order Part |
| (1)t |
Hose, 1/4 x 18 w/F JIC Ends (quantity: 1) |
41094 |
CALL QTE |
| (2)t |
Hose, 3/8 x 36 w/F JIC Ends (quantity: 1) |
49532 |
CALL QTE |
| (3) |
Elbow, 90° – 6 M JIC/–6 M ORB (quantity: 4) |
56615-1 |
CALL QTE |
| (4) |
Elbow Kit, 45° – 6M O-Ring/MJIC (quantity: 2) |
26694 |
CALL QTE |
F = Female.
M = Male or Metric.
t = Not used for Central Hydraulics |
