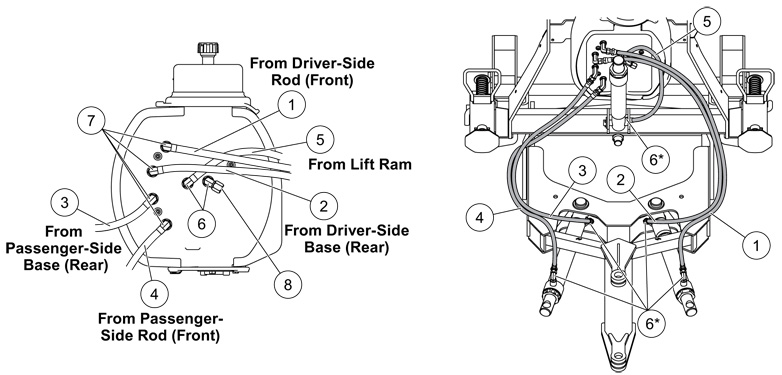

Chart Reference Number | Part Description | Part Number | Order Part |
(1) | Hose, 1/4 x 42 w/F JIC Ends (quantity: 1) | 56616-1 | ORDER ONLINE |
(2) | Hose, 3/8 x 45 w/F JIC Ends (quantity: 1) | 44350 | CALL QTE |
(3) | Hose, 3/8 x 38 w/F JIC Ends (quantity: 1) | 44351 | ORDER ONLINE |
(4) | Hose, 1/4 x 36 w/ FJIC Ends (quantity: 1) | 56599 | CALL QTE |
(5) | Hose, 1/4 x 22 w/F JIC Ends (quantity: 1) | 56830 | ORDER ONLINE |
(6)* | Elbow, 90° –6 M JIC/–6 M ORB (quantity: 7) | 56615-1 | CALL QTE |
(7) | Elbow, Extra Long 90° –6 M JIC/ –6 M ORB (quantity: 4) | 64212-1 | CALL QTE |
(8) | Drain Cap – 6 F JIC (quantity: 1) | 44346 | CALL QTE |
(ns) | Hose Wrap, Polyethylene (quantity: 2) | 56823 | CALL QTE |
(ns) | 3/8-16 x 1 Button Cap Screw (quantity: 3) | 98043 | CALL QTE |
ns = Not shown. F = Female. M = Male or Metric. * Also used for Central Hydraulics, qty 5. |
