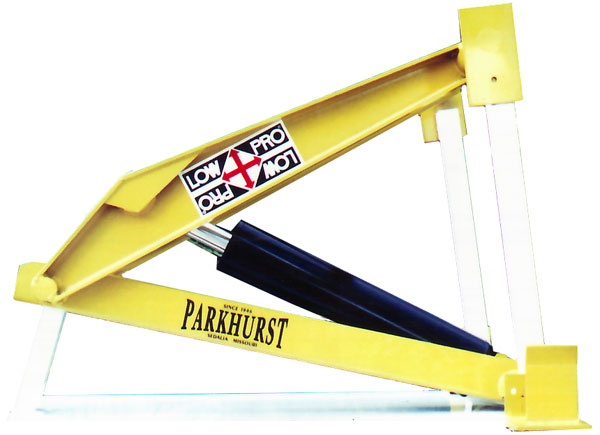

Parkhurst LM1520 Hoist

Parkhurst LM1520

LM1520 is an NTEA class C/20. Versatile in use for body lengths from 8 to 16 feet with truck chassis from 60" to 120" cab to axle provide a variety of lift capacities with dump angles from 40 to 55 degrees.

This hoist is designed for easy installation on today's one-ton cab chassis. The hoist mounts totally above the truck frame eliminating most interference with fuel tanks and exhaust. Optional 2-piece sub-frame offers seven factory set dump angles.

Two choices in hydraulic pumps are available, electric and direct mount. All systems are double acting, power up; power down, for total control of your load. Direct mount pumps have a neutral lock cable and electric have push button control as standard. Body prop is included. All necessary hardware, hoses and fittings are also included.

Another quality built product by Parkhurst, offering a proven design for reliability, strength and trouble free service.

Product #: LM1520

Call for price 309-662-5344

LM1520 Hoist Specifications
Cab to Axle: 60" to 120"
Body Length: 8' to 16'
Width: 96"
Body Longbeams: 60" to 84" CA: 5" by 6.7#
102" to 120": 6" by 8.2#
Hydraulic System: Electric Pump or Direct Mount Gear Pump
Oil Capacity: 9 qt.
Maximum RPM: 1800
Operating Pressure: 3800 psi
Cylinders: Single Cylinder 5" bore
20" stroke, w/o internal relief, double acting
Weight. Complete unit w/o pump or subframe: 418#
Mounting Height: 8.31"
Mounting Distance: 40deg - 106", 50deg - 86", 45deg - 95", 55deg - 79"
Basic Construction: High Strength Steel
Body Prop One included as standard Equipment
