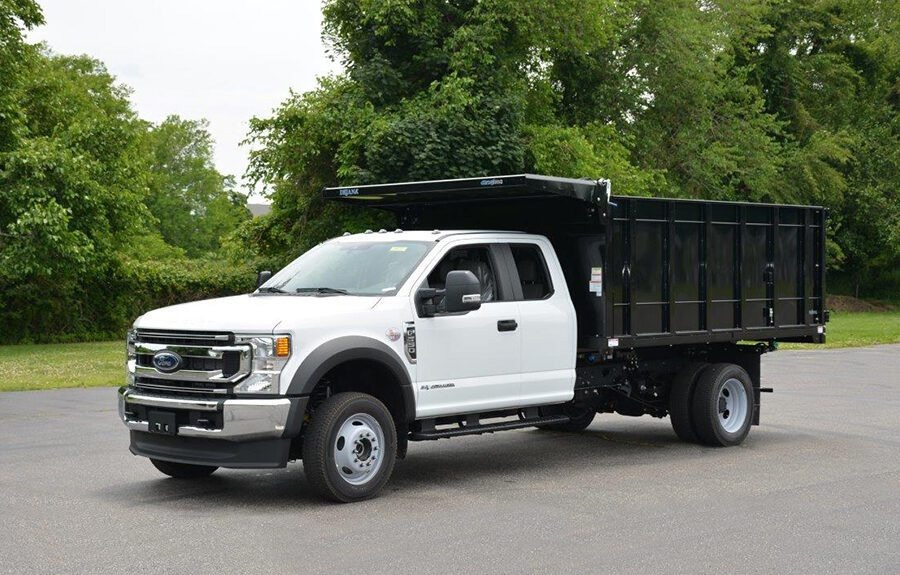

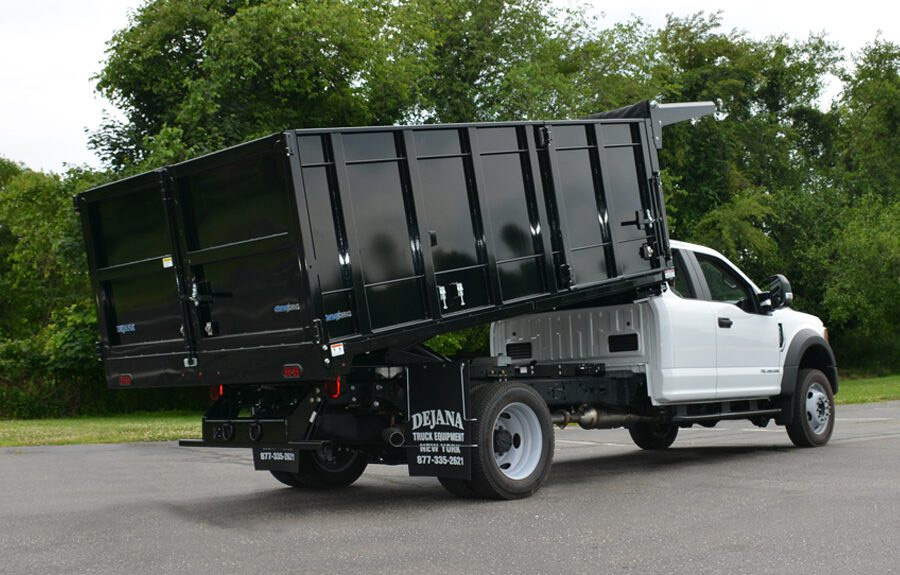

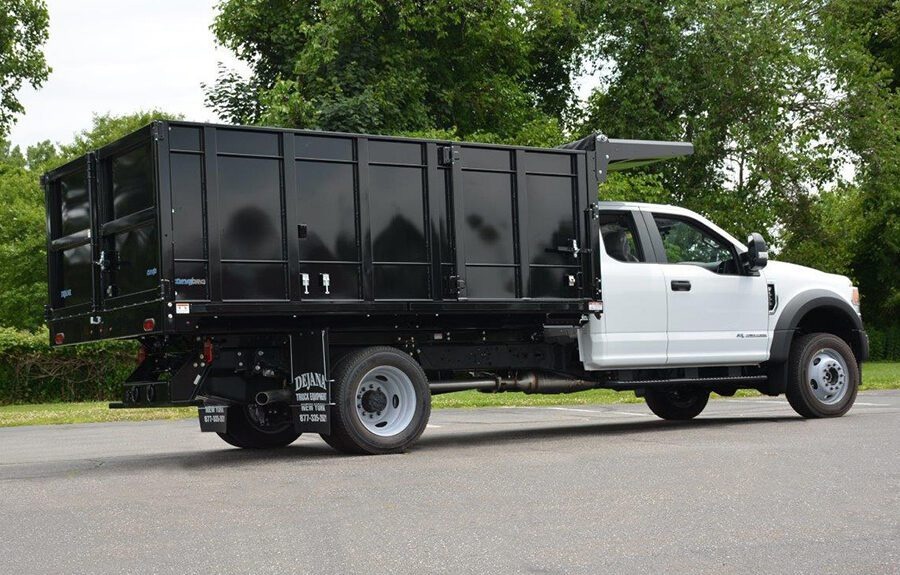

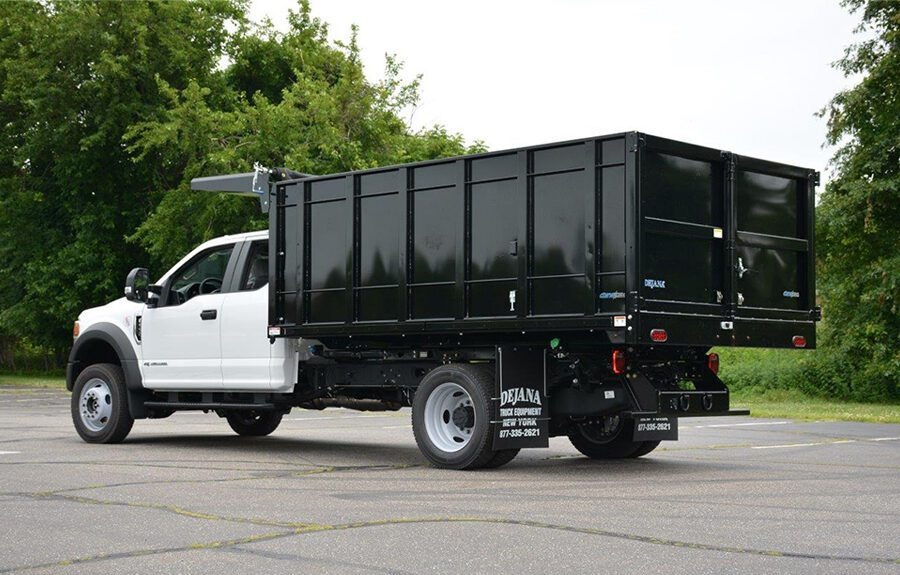

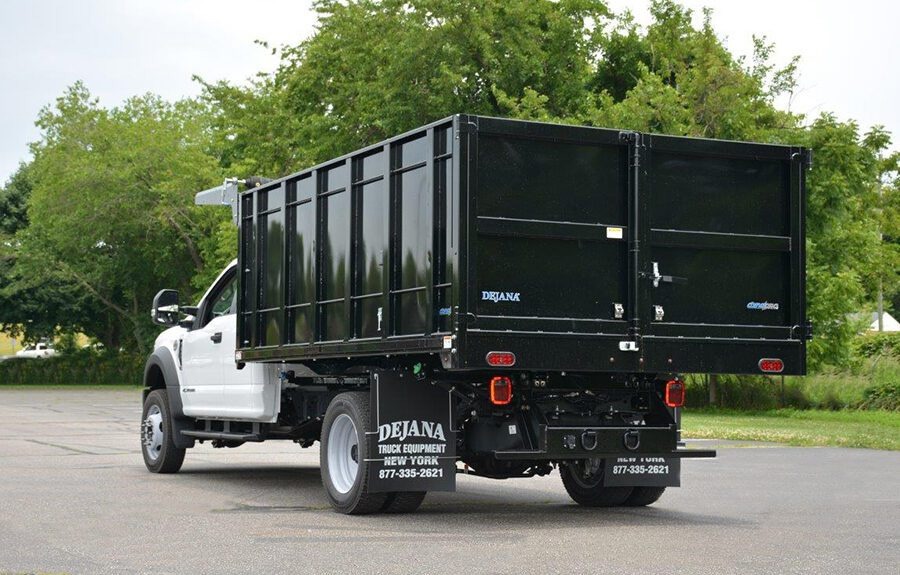

Dejana DynaPro Landscap Body

General Features

• Available in 9.5' & 12' Lengths
• 96" Body Width
• Available in 40" and 48" Side Heights
• Interior Useable Length: 107.5" (9.5') and 145" (12')
• 50" Curbside Door Opening
• ASTM A572 GR50 Alloy Steel
• Black Semi-gloss Powdercoat
• Pre-punched Accessory Holes
• New Ergonomic Hand-held Controller standard
• Optional Dual Functionality (Dump & Plow) Available.
• Formed C-channel Longsills (.188")
• 3 Ribs (.188")
• 2 Piece 10ga. Floor
• Fully Welded Steel Rubrail
• 12ga. Bulkhead

Electrical Features

• (2) 6" Rubber Grommet Mounted S/T/T/R Tail Lights
• (7) 3/4" Red Round Rear Skirt Marker Lights
  • (3) Rear Skirt
  • (1) Rear Side (each side)
  • (2) 3/4" Amber Round Front Marker Lights, 45 Bevel Mounted

Solid Side Landsapers

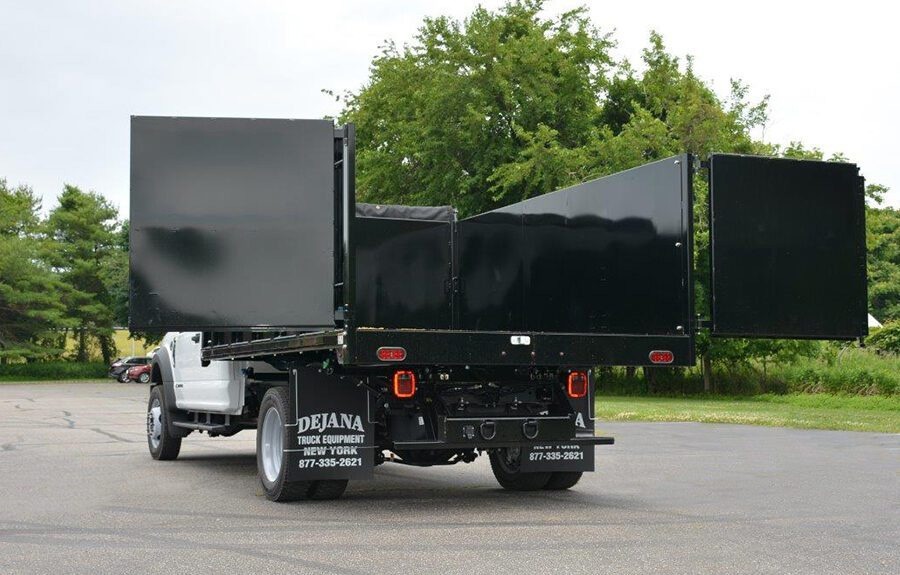

• Interchangeable Rear Door Options:
  • 2 Piece (Full Barn Doors)
  • 3 Piece (Tailgate & Barn Doors)
• 12ga Panels
• 12ga. Stakes
• 180 degree Swing Curbside Access Door
  • 50" W Opening
  • 12ga. Panel Thickness
  • 12ga. Vertical Support
  • Bar Lock Latch w/ Hasp
  • Retention Clip
  • Integral Grab Handle

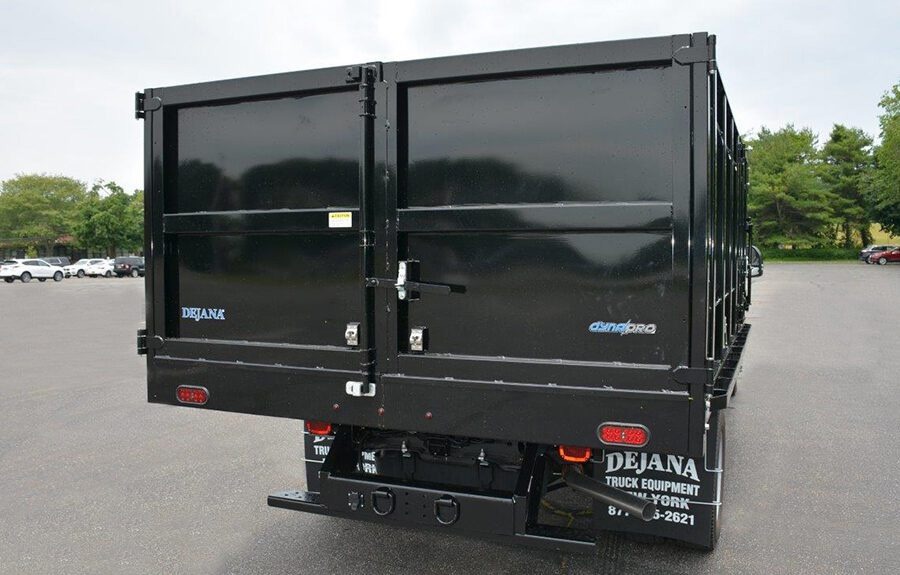

• 2 Piece Rear Door:
  • 12ga. Panel Thickness
  • (2) 7ga. Hinges per Door
  • 270 degree Door Swing
• 3 Piece Rear Door:
  • 17.5" Tailgate Height
  • Slide Locking Tail Gate Latches
  • 12ga. Panel Thickness
  • (2) 7ga. Hinges Per Overhead Door
  • 270 Degree Door Swing
• Optional Full Cab Shield Specifications:
  • 42" Forward Distance
  • 14ga. Panel Thickness
  • Available in (3) Cab Heights
  • 50.5", 56.5", 60.5"
